CS 59 Pa
CS 59Pa offers a wide range of profiles for building elegant, non-insulated aluminum structures in a functional style at an affordable price. The system provides various types of windows that open inwards and doors that open both inwards and outwards. CS59Pa belongs to the Concept System® series, a modular system for aluminum joinery, featuring a wide selection of fully interchangeable aluminum profiles and accessories.
Technical Features
Window construction depth:
Frame profile: 50 mm
Sash profile: 59 mm
Technical Parameters
Sound Insulation (EN ISO 140-3, EN ISO 717-1):
Rw (C; Ctr) = 36 (-1;-3) dB / 44(-2;-4) dB, depending on the type of glazing.
Thermal Insulation: Non-insulated system.
Air Infiltration: A4 (EN 1026, EN 12207)
Water Tightness: 9A (EN 1027, EN 12208)
Wind Load Resistance: C5 (EN 12211, EN 12210)
Burglary Resistance: WK 2
CS 59
CS 59 is a three-chamber window and door system with thermal insulation strips. The system is available in several aesthetic variants reflecting the latest architectural styles, offering various ways of opening windows and doors both inwards and outwards. CS 59 belongs to the Concept System® series, a modular system for aluminum joinery, featuring a wide selection of fully interchangeable aluminum profiles and accessories.
Technical Features
Window construction depth:
Frame profile: 50 mm
Sash profile: 59 mm
Technical Parameters
Sound Insulation (EN ISO 140-3, EN ISO 717-1):
Rw (C; Ctr) = 35 (-1;-4) dB / 38(-2;-5) dB, depending on the type of glazing.
Thermal Insulation: Heat transfer coefficient for profiles Uf from 3.0 W/m²K to 3.7 W/m²K, depending on the frame/sash profile combination.
Air Infiltration: A4 (EN 1026, EN 12207)
Water Tightness: E750 (EN 1027, EN 12208)
Wind Load Resistance: C5 (EN 12211, EN 12210)
Burglary Resistance: WK 2
CS 68
CS 68 is a three-chamber window and door system with thermal insulation strips, providing an optimal combination of high thermal insulation and a good level of security. The system is available in several aesthetic variants reflecting the latest architectural styles, offering various ways of opening windows and doors both inwards and outwards. CS68 belongs to the Concept System® series, a modular system for aluminum joinery, featuring a wide selection of fully interchangeable aluminum profiles and accessories.
Technical Features
Window construction depth:
Frame profile: 59 mm
Sash profile: 68 mm
Technical Parameters
Sound Insulation (EN ISO 140-3, EN ISO 717-1):
Rw (C; Ctr) = 34 (-1;-4) dB / 44 (-2;-5) dB, depending on the type of glazing.
Thermal Insulation: Heat transfer coefficient for profiles Uf from 2.40 W/m²K to 2.98 W/m²K, depending on the frame/sash profile combination.
Air Infiltration: A4 (EN 1026, EN 12207)
Water Tightness: E1200 (EN 1027, EN 12208)
Wind Load Resistance: C5 (EN 12211, EN 12210)
Burglary Resistance: WK 2
Eco system
Eco System is an excellent aluminum system combining aesthetic appearance with energy efficiency. With a Uf value of 2.25 W/m²K, this system meets the latest thermal insulation requirements. Eco System is a solution for all standard window and window-door applications.
Simplified prefabrication and easy installation of windows and doors in the Eco System have significantly reduced the production time of the final product.
Eco System is undoubtedly the best system in its price category.
Technical Features
Window construction depth:
Frame profile: 50 mm
Sash profile: 59 mm
Technical Parameters
Thermal Insulation: Heat transfer coefficient for profiles Uf from 2.25 W/m²K to 2.55 W/m²K, depending on the frame/sash profile combination.
Air Infiltration: A4 (EN 1026, EN 12207)
Water Tightness: E900 (EN 1027, EN 12208)
Wind Load Resistance: C3 (EN 12211, EN 12210)
Burglary Resistance: WK 2
CS 77
CS 77 is a three-chamber window and door system with thermal insulation, providing an optimal combination of comfort and a high level of security. The system is available in various shapes reflecting the latest architectural styles and is suitable for all types of windows and doors opening both inwards and outwards.
It belongs to the Concept System® series, a modular system for aluminum joinery, featuring a wide range of fully interchangeable aluminum profiles and accessories.
Technical Features
Window construction depth:
Frame profile: 67 mm
Sash profile: 77 mm
Technical Parameters
Sound Insulation (EN ISO 140-3, EN ISO 717-1):
Rw (C; Ctr) = 36 (-1;-4) dB / 42 (-2;-4) dB, depending on the type of glazing.
Thermal Insulation: Heat transfer coefficient for profiles Uf from 1.9 W/m²K to 2.6 W/m²K, depending on the frame/sash profile combination.
Air Infiltration: A4 (EN 1026, EN 12207)
Water Tightness: E900 (EN 1027, EN 12208)
Wind Load Resistance: C5 (EN 12211, EN 12210)
Burglary Resistance: WK 2 – WK 3
CS 86-HI
CS 86-HI is a thermally enhanced three-chamber window and door system with profiles featuring thermal breaks, combining attractive appearance, optimal rigidity, and high thermal insulation. The ribbed thermal breaks allow achieving a Uf value for the profile as low as 1.5 W/m²K, making it the most energy-efficient system in its class. The system offers inward-opening windows with various types of fittings and hinged doors opening both inwards and outwards.
Additionally, for CS 86-HI door constructions, several threshold solutions are available to meet the specific needs of individual customers.
CS86 belongs to the Concept System® series, a modular system for aluminum joinery, featuring a wide range of fully interchangeable aluminum profiles and accessories designed for easy prefabrication and assembly of constructions.
Technical Features
Window construction depth:
Frame profile: 77 mm
Sash profile: 86 mm
Technical Parameters
Thermal Insulation: Heat transfer coefficient for profiles Uf from 1.5 W/m²K to 1.9 W/m²K, depending on the frame/sash profile combination.
Air Infiltration: A4 (EN 1026, EN 12207)
Water Tightness: E900 (EN 1027, EN 12208)
Wind Load Resistance: C5 (EN 12211, EN 12210)
Burglary Resistance: WK 2
CP-50
CP 50 is a sliding system developed in response to the latest requirements in thermal insulation, aesthetics, and security.
CP 50 also incorporates modern technology, making it a highly competitive solution.
Technical Features
Window construction depth:
Frame profile: 77 mm
Sash profile: 86 mm
Technical Parameters
Frame profile: 50 mm (2-track), 92.4 mm (3-track)
Sash profile: 33 mm
Thermal Insulation: Heat transfer coefficient for profiles Uf from 3.4 W/m²K to 4.9 W/m²K, depending on the frame/sash profile combination.
Air Infiltration: A3 (EN 1026, EN 12207)
Water Tightness: 5A (EN 1027, EN 12208)
Wind Load Resistance: B3 (EN 12211, EN 12210)
CF 77
CF 77 is a new offering in the Reynaers range of folding (accordion) door systems, providing better optimization of living space. Using this aesthetic and functional system to connect the home with the garden, folding doors with up to 8 panels can be created in various configurations and sequences.
There are 4 threshold options for the doors: high-performance sealing, medium-performance sealing, low threshold, and flush threshold. The high-performance threshold option offers excellent resistance to rainwater and low air permeability.
The medium-performance threshold option combines good air permeability and rainwater tightness. The low threshold, protruding 18 mm above the floor, as well as the flush low threshold, allow easy passage and maximum comfort.
An additional practical feature of the CF 77 system is the flexible use of door fittings on the main panel, enabling it to function as an entrance door without affecting the other folding panels (window function).
The CF 77 system is available in two aesthetic versions: functional and SlimLine, with a narrower visible width.
CP 155
CP 155 is a sliding and lift-and-slide door system with thermally insulated profiles, capable of accommodating panels with a maximum weight of up to 400 kg.
The panel moves on high-quality stainless steel or synthetic rollers. The sophisticated design meets the highest user expectations: optimal quality, high thermal insulation, and ease of operation.
Technical Features
Frame profile: 155 mm
Sash profile: 68 mm
Technical Parameters
Sound Insulation (EN ISO 140-3, EN ISO 717-1):
Rw (C; Ctr) = 37 (-1;-3) dB / 43 (-1;-5) dB, depending on the type of glazing.
Thermal Insulation: Heat transfer coefficient for profiles Uf from 3.0 W/m²K to 4.8 W/m²K, depending on the frame/sash profile combination.
Air Infiltration: A4 (EN 1026, EN 12207)
Water Tightness: 8A (EN 1027, EN 12208)
Wind Load Resistance: C4 (EN 12211, EN 12210)
Burglary Resistance: WK 2
CP 130
CP 130 is a sliding and lift-and-slide door system with thermally insulated profiles, based on the proven CS68 system profiles. This solution is characterized by reduced production time, improved material logistics, and compatibility with the existing product range.
The optimized threshold solution, increased thermal insulation coefficient up to 2.78 W/m²K, and the ability to use panels weighing up to 300 kg highlight the modernity of the CP130 system.
CW 50
CW 50 is a system for creating curtain walls, roof slopes, and spatial structures, offering not only unlimited design freedom but also, thanks to its slim 50 mm load-bearing profiles, maximizing the amount of light entering the building. The system is available in eleven individual solutions, allowing for a variety of aesthetic effects. The wide range enables the combination of vertical walls and roof slopes, as well as the integration of operable elements. This extensive range also includes technical solutions adapted to different façade performance requirements.
Technical Features
Visible internal width: 50 mm
Visible external width: 50 mm
Technical Parameters
Sound Insulation (EN ISO 140-3, EN ISO 717-1):
Rw (C; Ctr) = 34 (-1;-4) dB / 48 (-2;-8) dB, depending on the type of glazing.
Thermal Insulation: Separate tests for each profile combination.
Air Infiltration: A4 (EN 12153, EN 12152)
Water Tightness: RE900 (EN 12155, EN 12154)
CW 60
CW 60 is a curtain wall system in which the glazing is secured with pressure strips attached to the load-bearing structure. By overlapping the glass behind the strip to a depth of 18 mm and further covering the spacer bar of the insulated glass, higher thermal insulation of the cross-section is achieved. CW 60 includes a wide range of profiles, allowing for the integration of various types of operable elements.
The load-bearing profiles have high moments of inertia, making the CW 60 system particularly suitable for large-scale roof slopes, vertical walls, and arched constructions.
The recently updated CW 60 system is available in five solutions, enabling a variety of aesthetic effects.
Technical Features
Visible internal width: 60 mm
Visible external width: 60 mm
CR 120
CR120 is an insulated system designed for constructing winter garden roofs. Key elements of the system include a wide thermally insulated gutter available in several variants and rafters of varying strength with a load-bearing element directed into the interior of the winter garden. The system is suitable for both insulated glass and polycarbonate panels. A major advantage of this solution is full compatibility with all Reynaers sliding and window-door systems, as well as the system roof window.
CR120 is available in 6 connection variants, making it very simple and quick to install. One of the solutions, featuring a base profile without a visible gutter, allows for the construction of small skylights.
Technical Features
Min. visible rafter width: 60 mm
Technical Parameters
Thermal Insulation: Separate tests for each profile combination.
Air Infiltration: A1 (EN 1026, EN 12207)
Wind Load Resistance: C2 (EN 12211, EN 12210)

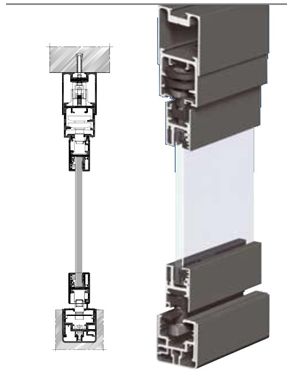

GP 51
The GP 51 system is an innovative all-glass sliding system.
This system consists of individual panels. GP 51 is a modular system for enclosing balconies, terraces, and interior partitions. It is designed to meet the requirements of modern, lightweight, and transparent architecture. Easy and quick installation, along with a unique lower rail solution that avoids a protruding bottom threshold, allows for easy access to the terrace. GP 51 is an ideal solution for enjoying the surroundings throughout the year.
RB 10
The RB 10 system has been tested in renowned research centers according to the strictest European standards and guarantees the highest level of security. The RB 10 system is available in several aesthetic variants: functional, elliptical, or softline.
In addition to standard bars, the system also allows for infill with glass, as well as plexiglass or acrylic sheets, which can be installed in front of, between the post profiles, or directly in the channel.
