Application
The TM 62 2.1 Door system is designed for constructing thermally and acoustically insulated, aesthetically appealing doors intended for external installation in residential, public, and industrial buildings.

The system allows for the following constructions:

• Single-leaf doors opening inward or outward,
• Double-leaf doors opening inward or outward,
• Single- and double-leaf doors integrated into display units, with transoms and side panels.

Technical Description

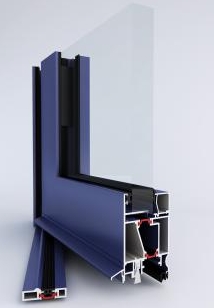

The system consists of three-chamber aluminum profiles with a thermal break.
Installation depth:

• Frame – 62 mm
• Sash – 62 mm

The TM 62 system allows the use of various types of infills.
Maximum sash dimensions:

• Sash height: 2300 mm
• Sash width: 1250 mm

Additional Benefits
The range of profiles enables the construction of doors with a unique character. Profiles of varying widths allow the use of a full range of modern fittings, as well as custom handles or pull bars. The profile widths accommodate concealed hinges and remote-controlled locks.

Technical Parameters
