Application
The TM 74 1.0 Door system is designed for constructing doors with high thermal and acoustic insulation as well as aesthetic qualities, intended for external installation in residential, public, and industrial buildings.

The system allows for the following constructions:

• Single-leaf doors opening inward and outward,
• Double-leaf doors opening inward and outward,
• Single- and double-leaf doors installed in display units, with transoms and side panels.

Technical Description

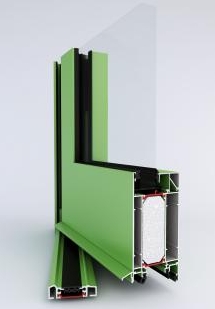

The system consists of three-chamber aluminum profiles with a thermal break.
Installation depth:

• Frame – 74 mm
• Sash – 74 mm

The TM 74 system allows the use of various types of infills (insulated glass units, including triple-glass packages 13–46 mm thick, as well as various opaque infills).

Maximum sash dimensions:

• Sash height 2300 mm,
• Sash width 1250 mm.

The system features a unique internal chamber division that provides excellent thermal properties.

Additional Benefits
The profile range allows constructing doors with a distinct character. Profiles of various widths enable the use of a full range of modern hardware, as well as custom handles or pull bars. The profile width allows for concealed hinges and remote-controlled locks.

Key Features
TM 74 1.0 doors are a modern solution suitable for a wide range of users. The unique air circulation system within the profiles enables construction with high thermal insulation. Full RAL palette painting and wood-like coatings allow giving the doors an individual character. Suitability for use in construction is confirmed by tests carried out in notified laboratories.

Technical Parameters
